PVC + PE Jacket CAT5E FTP Cable , Waterproof 24AWG 2 Pair Shielded Cable

SHENZHEN LIANXUN HIGH-TECH CO., LTD.& LANSAN INTL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

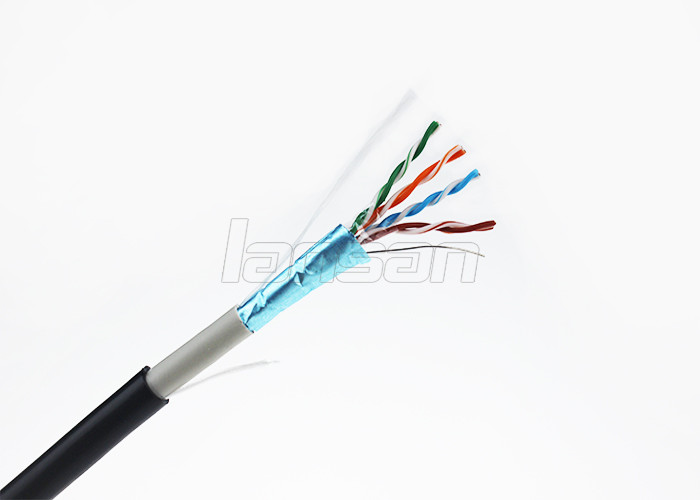

PVC + PE Jacket CAT5E FTP Cable , Waterproof 24AWG 2 Pair Shielded Cable

  • 1
  • 2

Brand Name : OEM/ ODM/ Lansan

Model Number : CAT5E FTP

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 50 /Rolls

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000 Rolls/Day

Delivery Time : 12-15 Work Days

Packaging Details : 305 Meter/Roll

Jacket : PVC+PE

Conductor : 24AWG Solid BC

Insulation : HDPE

Shield : Aluminum Mylar

Color : Black or Customized

Cord : 4 Twisted Pairs

Contact Now

PVC + PE FTP Outdoor Double Waterproof 24AWG CAT5E Lan Cable

Electrial characteristics

  • Communicate rate: 100 MHZ
  • Insulated Resistance: ≥5000MΩ.km at 20°C
  • Working temperatures: -20 to 75°C
  • Impedance: 9.38 Ω /100M
  • Reference standard: YD/T 1019-2013; UL444; UL1581;TIA/EIA-568B;IEC 60332-1 ; ISO/IEC11801; (Performance and superior to the above standards)
  • Electrical characteristics:
  • Communicate rate: 100 MHZ
  • Insulated Resistance: ≥5000MΩ km at 20°C
  • Working temperatures: -20 to 75°C
  • Impedance: 9.38 Ω /100M

.
Specification

No. of Cord 4 Pairs
Conductor Material BC
Construction 1/0.50 ± 0.008mm
Insulation Material HDPE
Filler /
Shield Material AI-Mylar
Braiding /
Drain Wire Material Aluminum Magnesium Metal
Rip Cord Nylon
Jacket Material PVC + PE
O.D. 6.6 ± 0.30mm
Color Black or Customized
Marking Customized
Insulation Resistance Min. 5000 mega ohms-km at 20℃
Dielectric Test 1000V DC /1 min ; No Breakdown
Temperature Rating 60℃
Operating Temperature -20℃ ~ 80℃
Mutual Capacitance 5.8nF/100m


Application

  • Ethernet;
  • 10 Base-TX;
  • ATM;
  • Trunk Cabling;
  • Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.


Competitive Advantage

  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.​

PVC + PE Jacket CAT5E FTP Cable , Waterproof 24AWG 2 Pair Shielded Cable
