Outdoor Bare Copper Network Cable , Cat5e FTP 4p Twisted Pair Cable 500m

Name: Outdoor Bare Copper Network Cable Cat5e FTP 4p Twisted Pair Cable 500m
Brand: OEM/ ODM/ Lansn
Price: 1 USD

Buy cheap Outdoor Bare Copper Network Cable , Cat5e FTP 4p Twisted Pair Cable 500m product

Brand Name : OEM/ ODM/ Lansn

Model Number : CAT5E FTP

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 50 Boxes

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability : 5000 Box/Day

Delivery Time : 12-15 Work Day

Packaging Details : 305 meter/box

Conductor : 0.511mm Solid Bare Copper

Insulation : HDPE

Cord : 4Pairs

Shiled : Al Foil

Jacket : PE(Polyethylene)

Color : Customized

Contact Now

Outdoor Bare Copper 500m Network Cat5e FTP 4p Twisted Pair Cable

Description

We offer these 1,000 ft. pull boxes for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. The cable meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss. Constructed from high quality solid copper cable, this design minimizes Near-End Crosstalk levels. This product is available in a variety of colors to easily color-code your network installation and make Vericom your one-stop shop for your networking cable needs.

Specification

No. of Cord	4 Pairs
Conductor	Material	BC
Conductor	Construction	1/0.50 ± 0.008mm
Insulation	Material	HDPE
Filler	/
Shield	Material	AI-Mylar
Shield	Braiding	/
Drain Wire	Material	Aluminum Magnesium Metal
Rip Cord	Nylon
Jacket	Material	PE
	O.D.	6.0 ± 0.30mm
	Color	Customized
Marking	Customized
Insulation Resistance	Min. 5000 mega ohms-km at 20℃
Dielectric Test	1000V DC /1 min ; No Breakdown
Temperature Rating	60℃
Operating Temperature	-20℃ ~ 80℃
Mutual Capacitance	5.8nF/100m

Tech Specs

ACRF	17.4 dB/100 m at 100 MHz
Conductor	24 AWG, Solid
Frequency	100 MHz
Insertion Loss (Maximum)	24.0 dB/100 m at 100 MHz
Jacket	PVC
NEXT	30.1 dB at 100 MHz, minimum
PS-ACRF	14.4 dB/100 m at 100 MHz, minimum
PS-NEXT	27.1 dB at 100 MHz, minimum
Return Loss	10.0 dB at 100 MHz

Features

Independently tested and verrified by ETL
Humanized Design
Full series Keystone Jack supported
Quick Installation design avaiable

Outdoor Bare Copper Network Cable , Cat5e FTP 4p Twisted Pair Cable 500m

Product Tags:

ethernet lan cable

utp cat5e cable

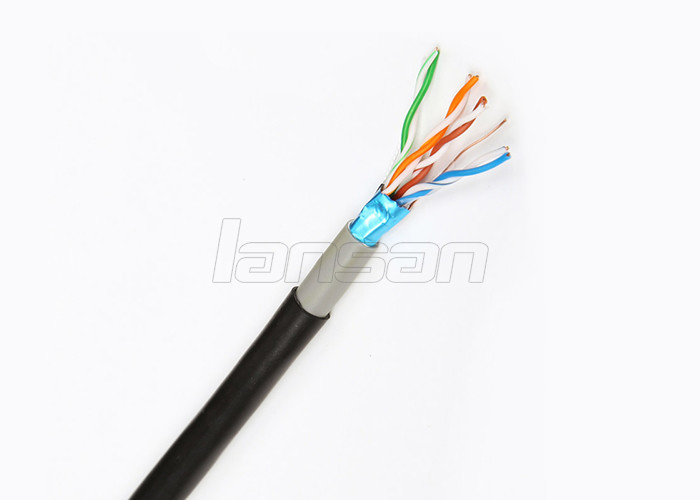

Outdoor Bare Copper Network Cable , Cat5e FTP 4p Twisted Pair Cable 500m Images
