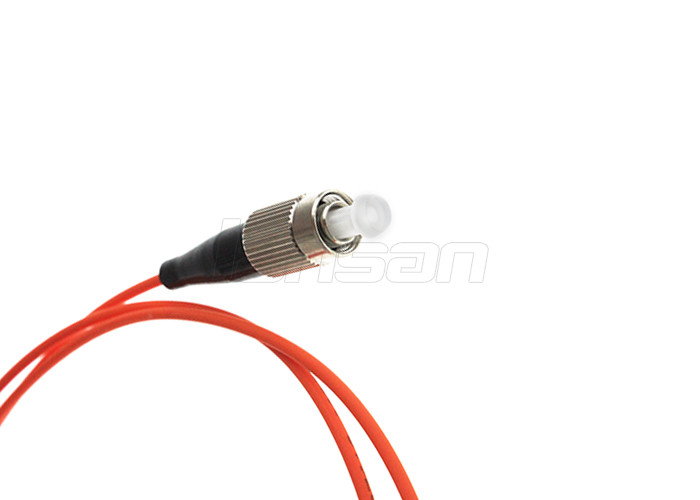

0.9mm FC Connector Fiber Optical Pigtail Riser Plenum LSZH Multimode OM3

  • 1
  • 2
  • 3

Brand Name : OEM/ ODM/ Lansan

Model Number : FC

Certification : CE/ RoHS/ ETL/ UL

Place of Origin : China

MOQ : 1000 Meters

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Meters/ day

Delivery Time : 10-12 Work Days

Packaging Details : 1 pcs/bag

Connection Structure : FC

Diameter : 0.9mm

Type : Multimode

Transport Package : PE Bag +Carton

Origin : China

Core : Single Core

Contact Now


0.9mm FC Connector Fiber Optical Pigtail Riser Plenum LSZH Multimode OM3





Description

  • Fiber optic pigtails are used in permanent connections between fiber patch panels and incoming cables / single blown fibers.
  • Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises of
  • multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factors
  • such as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal use
  • only inside suitable Fiber Management Systems.


Standards Compliance



  • ISO/IEC 11801
  • TIA-568-C.3
  • EN50173 -1,ANSI TIA/EIA 568B


Features



  • Constructed from high quality connectors and standard fibers
  • Wide range of connector and fibre options available
  • Tight Buffer 900µm buffer internal construction as standard
  • Custom lengths, connector combinations and polishes are available.
  • Other cable diameters and fibre types available on request


Specifications



Connector Type SC, LC, FC, ST, MU
Fiber Type G652D, G657A, OM1, OM2, OM3, OM4
Polish or Ferrule Interface Type PC, UPC, APC
Jacket Material PVC or LSZH
Cable Diameter 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Color (Multimode: OM1 & OM2) Orange
Jacket Color (Multimode: OM3) Aqua
Jacket Color (Multimode: OM4) Aqua or Purple
Jacket Color (SingleMode: G652D & Gb57A) Yellow
Insertion Loss (dB) Max. ≤0.3
Return Loss (dB) Singlemode PC≥45, UPC≥50, APC≥60
Return Loss (dB) Multimode PC≥35dB
Note:Other Jacket colors may be available upon request.
