SC LC Fiber Optic Patch Cord 8 Degree OM3 Multimode Fiber Patch Cable

  • 1
  • 2

Brand Name : OEM/ ODM/ Lansan

Model Number : ST-ST

Certification : CE/ RoHS/ ETL/ UL

Place of Origin : China

MOQ : 1000 Meters

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Meters/ day

Delivery Time : 10-12 Work Days

Packaging Details : 1 pcs/bag

Connection Structure : ST

Cord : OM3

Type : UPC

Sheath Material : Lszh,PVC

Trademark : Lansan/ OEM

Orgin : China

Contact Now





 SC LC Fiber Optic Patch Cord 8 Degree OM3 Multimode Fiber Patch Cable





Features



  • Low insertion loss and high retum loss
  • Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
  • For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
  • All materials meet the RoHS standard.
  • The patch cable can be customized according to customers specific requirements
  • Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
  • Strict quality testing:IL and RL 100% test.
  • A variety of BOOT color choices.


Applications


  • Wiring of local area network between different enterprise buildings
  • Connection of optical links in optical active devices
  • Wiring in communication base station and distrinbtion case
  • Production and testing of optical devices
  • Optical fiber communication system,CATV and telecommunication network
  • LANs and WANs
  • FTTx


Specifications


  Item   Parameter
  Applicative connector type   SC,LC,FC,ST,MU,D4,DIN
  Fiber mode   Single mode   Multi-mode
  Operating wavelength   1250~1650nm   850nm, 1300nm
  Test wavelength   1310nm, 1550nm   850nm, 1300nm
  Insertion Loss    typical≤0.20dB,Max≤0.30dB   typical≤0.15dB,Max≤0.25dB
  Return Loss   UPC≥50.0dB,APC≥60.0dB   ≥35.0dB
  Repeatability   ≤0.10dB
  Interchangeability   ≤0.20dB
  Durability    ≤0.20dB typical change,1000 mating
  Tensile Strength   ≥120N(without 0.9mm patchcord) or customized
  Operating Temperature   -20ºC to +70ºC
  Storage Temperature    -40ºC to +85ºC

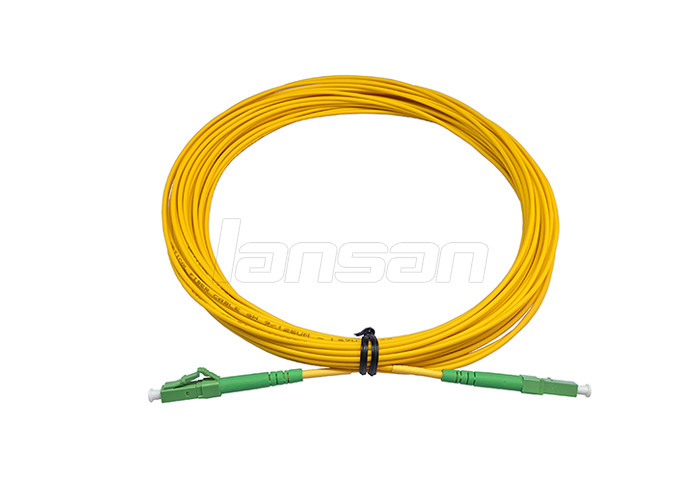

SC LC Fiber Optic Patch Cord 8 Degree OM3 Multimode Fiber Patch Cable

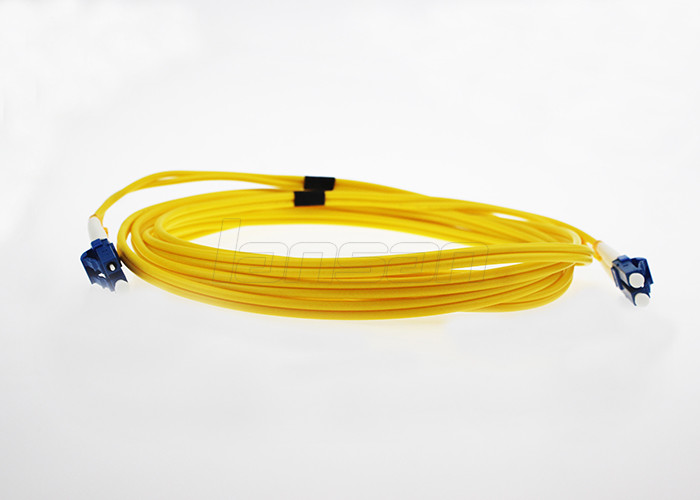

SC LC Fiber Optic Patch Cord 8 Degree OM3 Multimode Fiber Patch Cable
