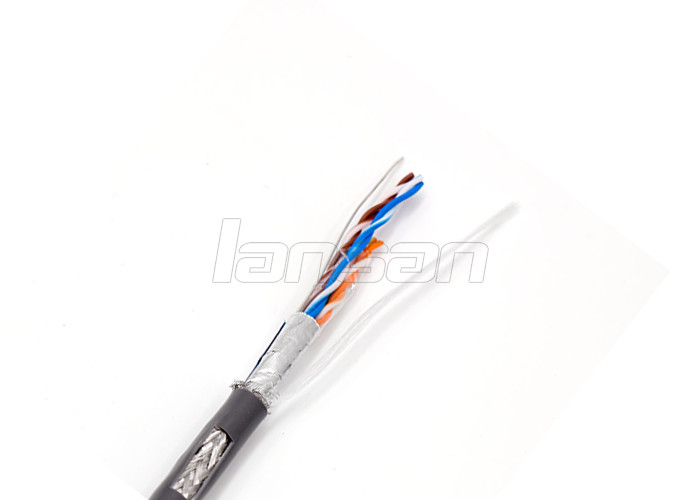

Waterproof 1000ft SFTP Cat5e Lan Cable 4P Solid Stranded Network Lan Cable Outdoor

Name: Waterproof 1000ft SFTP Cat5e Lan Cable 4P Solid Stranded Network Lan Cable Outdoor
Brand: OEM/ ODM/ Lansn
Price: 1 USD

Buy cheap Waterproof 1000ft SFTP Cat5e Lan Cable 4P Solid Stranded Network Lan Cable Outdoor product

Brand Name : OEM/ ODM/ Lansn

Model Number : CAT5E SFTP

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 50 Boxes

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability : 5000 Box/Day

Delivery Time : 12-15 Work Day

Packaging Details : 305 meter/box

Conductor : 0.50 Solid Bare Copper

Insulation : HDPE

Cord : 4Pairs

Shiled : Al Foil

Jacket : PE

name : cat5 network cable

Contact Now

Waterproof 1000ft Cable HDPE Insulation SFTP Cat5e 4P Solid Stranded Network Lan Cable Outdoor

Description

1000Base-T is the standard applied by the Cat5e system during the Gigabit Ethernet transaction, which could run

properly on the Cat5 Twist-Pair that meets the standard of ANSI/TIA/EIA-568A (1995).1000Base-T would finish the data transaction by applying to 4 pairs of Cat5 Twist-Pair and each of them is responsible for a 250Mbps data flow. However, as the designed bandwidth is only 100MHz

for the Cat5 & Cat5e Twist-Pair, it must satisfy some special requirements to achieve the two-way transmission within the 1000Mbps network.

Specification

No. of Cord	4 Pairs
Conductor	Material	BC
Conductor	Construction	1/0.50 ± 0.008mm
Insulation	Material	HDPE
Filler	/
Shield	Material	AI-Mylar
Shield	Braiding	Aluminum Magnesium Ally Solid
Drain Wire	Material	Aluminum Magnesium Metal
Rip Cord	Nylon
Jacket	Material	PE
	O.D.	6.2 ± 0.30mm
	Color	Customized
Marking	Customized
Insulation Resistance	Min. 5000 mega ohms-km at 20℃
Dielectric Test	1000V DC /1 min ; No Breakdown
Temperature Rating	60℃
Operating Temperature	-20℃ ~ 80℃
Characteristic Impedance	100Ω ±15%,1~ 350MHz

Application

Computer Network Cabling Project.
Broadband Network Communication.
Digital ISDN Network and ATM 155Mbps Network.
Ethernet Network.
Audio and Data Transmission.
