LC SC Jacket OEM Mode Optical Fiber Cable GYTXW Loose Tube OS2 2 ~ 24 Cores

LC SC Jacket Single Mode Optical Fiber Cable GYTXW Loose Tube OS2 2 ~ 24 Cores

Description

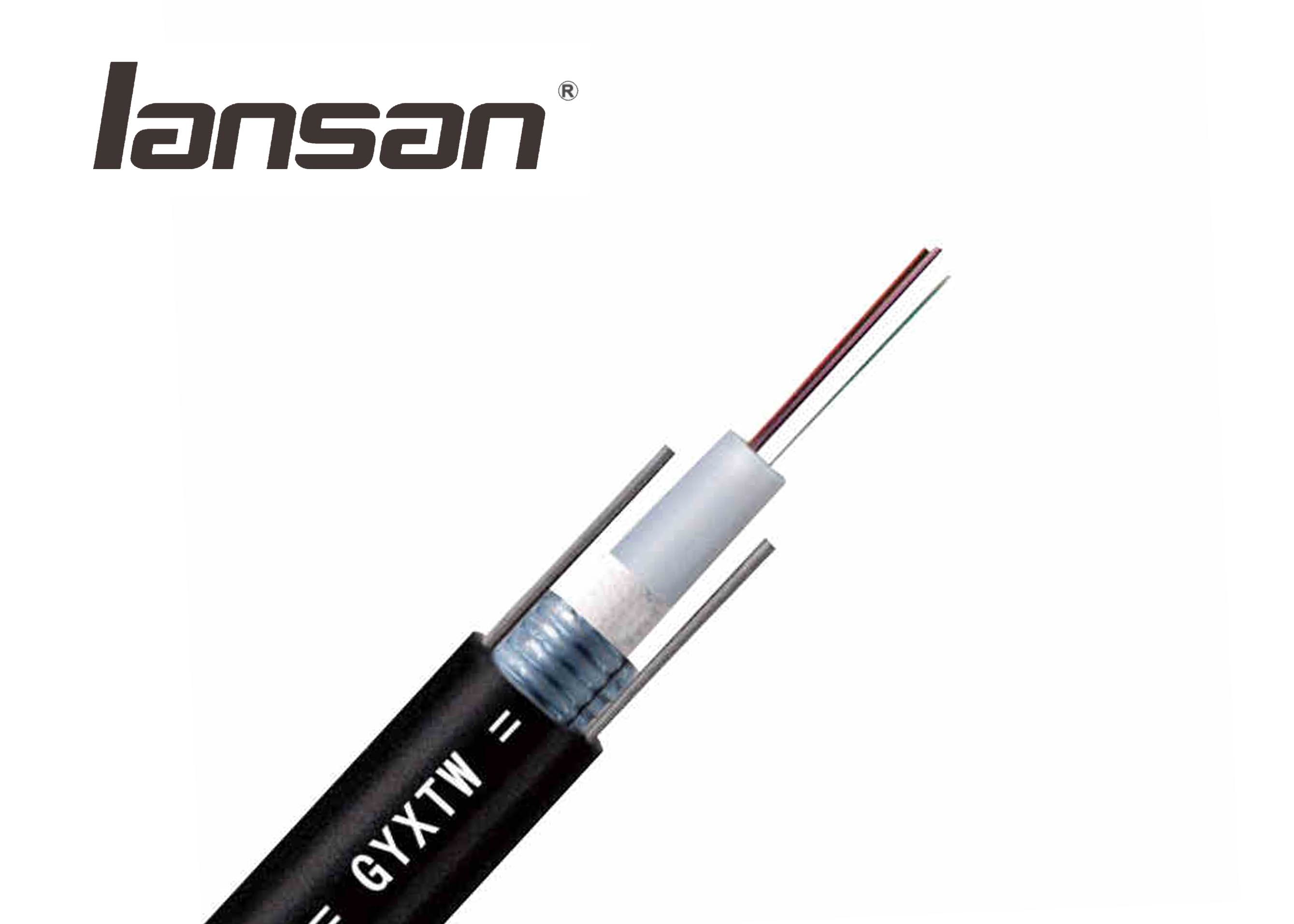

        GYXTW is an outdoor optic fiber cable with metal strength member of central loose tube jelly filled structure with corrugated steel-polyethylene laminated sheath, consisting of the central   loose tube, two paralleled steel    wire member and PE outer sheath.

Feature

        Full cross-section water-blocking structure to ensure good water blocking and moisture resistance

        Loose tube is filled with special ointment for a key fiber protection

        Two parallel round steel wires are resistant to tensile and lateral pressure

        Small cable diameter, light weight and excellent bending properties

        Loose tube is in the physical center of fiber cable, easy for installation and operation

        Outer jacket structure make cable have nice properties of moisture resistance and crush resistance

Performance

      Max attenuation : 0.35dB ,1310nm and 0.21dB/Km ,1550nm

        Installation : Aerial, duct and direct burial

        Application : Apply to Long distance communication system, Local area network system and subscriber Network

      Lifetime : Above 30 years

      Operating temperature : -30℃~+70℃

      Storage temperature: -40℃~+60℃
