Rack Mount Fiber Optic Patch Panel , 36 Ports 19 Feets Drawer Style 1u Fiber Patch Panel

Brand Name : LANSAN/ OEM/ ODM

Model Number : 1U Fiber Patch Panel

Certification : CE/ RoHS/ ETL/ UL

Place of Origin : China

MOQ : 100 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 100 pcs/ day

Delivery Time : 6 - 8 work days

Packaging Details : 1 pcs/bag

Connector : SC, LC, FC, ST

Port Number : 36 Cores

1u Size : 1u(H) X 19”(W) X 330mm(D)

Material Coating : Powder

Material : 1.2mm Cold Rolled Steel

Origin : Shenzhen, China

Contact Now

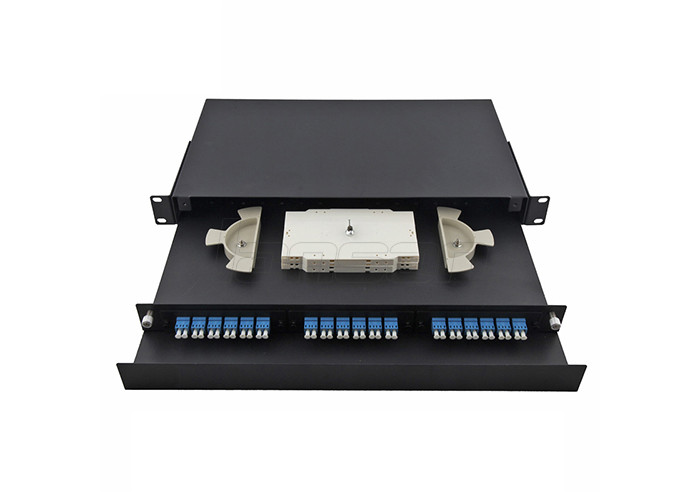

Rack Mount Fiber Optic Patch Panel 36Ports 19 Feets 1u Drawer Style







DescrIption


1U Fiber patch panel is design to ensures professional cable management and ease of fiber termination with front cable manager. The wall-mount box is available with 18, 20, 22, 24 or 36 positions (termination/splice).


Standards Compliance

  • TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
  • CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
  • UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
  • RoHS (Directive on Restriction of Hazardous Substances. )
Features
  • Sliding 1U patch panel with defined stop for the drawer.
  • Management front cable patchcords.
  • Providing protective connections for optical fibers and distribution pigtails.
  • Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
  • 1U rackmount can be loaded with up to 3 Short adapter plates (6-, 8-, or 12- fiber panels).
  • Can load SC, FC, ST, LC adapter, only change the different plates.

Specifications



  Patch Panel   Adaptor
  Size(H×W×D )mm   1U(H) x 19"(W) x 330mm(D)   Multimode Insertion Loss   0.2dB Maximum
  Material   1.2mm Cold Rolled Steel   Singlemode Insertion Loss   0.2dB Maximum
  Material Coating   Powder   Mating durability   >500 Mating Cycles
  Humidity   0-90%, non-condensing   Multimode Adaptor Wavelength   850 to 1300nm
  Operating Temperature   -10°C to 60°C   Singlemode AdaptorWavelength   1310 to 1550nm
  Storage Temperature   -40°C to 85°C   ROHS Compliant   Yes

Rack Mount Fiber Optic Patch Panel , 36 Ports 19 Feets Drawer Style 1u Fiber Patch Panel
