24 AWG CCA Cat6 FTP Patch Cable Color Customized Ethernet Cable

Product Categories

SHENZHEN LIANXUN HIGH-TECH CO., LTD.& LANSAN INTL LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 24 AWG CCA Cat6 FTP Patch Cable Color Customized Ethernet Cable
Brand: OEM/ ODM/ LANSAN
Price: 1 USD

Brand Name : OEM/ ODM/ LANSAN

Model Number : CAT6 FTP

Certification : ETL/ CE/ UL/ ANATEL/ RoHS

Place of Origin : China

MOQ : 5000 Pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000 Boxes/Day

Delivery Time : 10-12 Working Day

Packaging Details : 400 pcs/box

Conductor : 24AWG CCA (Copper Clad Aluminum)

Insulation : HDPE

Cord : 4 pairs Cat6 Cable

Jacket : ROHS

Shiled : Al Foil

Color : Customized

Contact Now

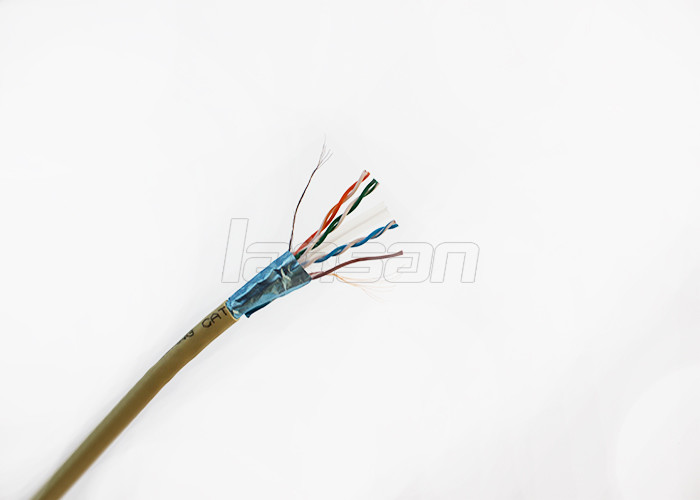

24 AWG CCA Cat6 FTP Patch Cable Color Customized Ethernet Cable

Description

Lansan Patch Cords are made in flexible stranded conductor with snag-less booted

design.
Designed for network adapters, hubs, switches, routers, DSI/cable modems and patch

panels.
Constructed with high-quality cable and a shortened body plug, prevents unwanted

cable snaps during installation and provides strain-relief.
A variety of colors make the network installation and color-code more easily.
Easy to insert and remove cables in high density applications.

Specification

No. of Cord	4 Pairs
Conductor	Material	CCA
Conductor	Construction	24AWG 7/0.20mm
Insulation	Material	HDPE
Filler	/
Shield	Material	Aluminum Mylar Spirally Wrapped
Shield	Braiding	/
Drain Wire	Material	Aluminum Magnesium Metal
Rip Cord	Nylon
PE Cross	Material	Polyethylene
PE Cross	Construction	4mm*4mm
Jacket	Material	PVC
	O.D.	7.0 ± 0.2mm
	Color	Customized
Marking	Customized
Mutual Capacitance	5.8nF/100m
Characteristic Impedance	100Ω ±15%,1~ 350MHz
Conductor DC Resistance	9.3Ω/100m Max.
Voltage	300V
Delay Skew	25ns/100m Max.

Features

Competitive Advantage

For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
Certificates: UL, CE, ETL, RoHS, ANATEL & ISO approval.
