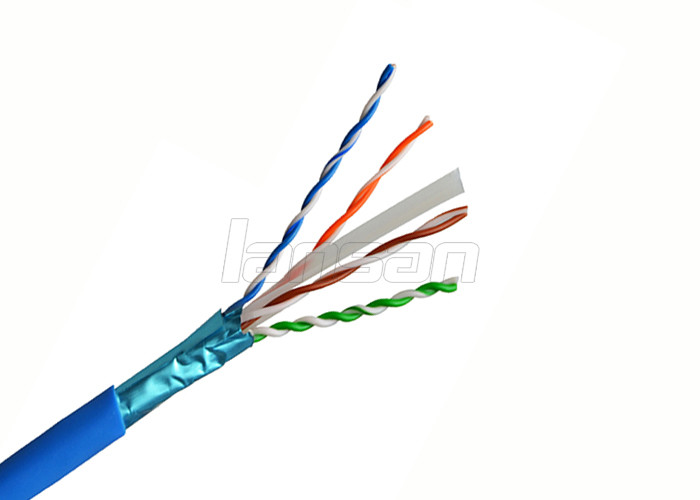

Indoor FTP 0.57mm CCA Cat6 Lan Cable PVC 305m Al Foil For Networking

Name: Indoor FTP 057mm CCA Cat6 Lan Cable PVC 305m Al Foil For Networking
Brand: OEM/ ODM/ Lansn
Price: 1 USD

Buy cheap Indoor FTP 0.57mm CCA Cat6 Lan Cable PVC 305m Al Foil For Networking product

Brand Name : OEM/ ODM/ Lansn

Model Number : CAT6 FTP

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 50 Rolls

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability : 5000 Rolls/Day

Delivery Time : 12-15 Work Day

Packaging Details : 305 meter/roll

Conductor : 0.57mm CCA

Insulation : HDPE

Cord : 4Pairs

Shiled : Al Foil

Jacket : PVC

Color : Customized

Use : Communication

Length : 1000ft/305m

Contact Now

Indoor Cat6 Lan Cable FTP 0.57mm CCA PVC 305Meters For Networking Good Price with High Quality

Description

Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.
Combined with keystone Jack Patch cords, and patch panel, it provides
excellent and stable performance.
The solution is for hospital, government manufacturingand other environments.

Specification

No. of Cord	4 Pairs
Conductor	Material	CCA (Copper Clad Aluminum)
Conductor	Construction	1/0.57 ± 0.008mm
Insulation	Material	HDPE
Filler	/
Shield	Material	Aluminum Mylar Spirally Wrapped
Shield	Braiding	/
Drain Wire	Material	Aluminum Magnesium Metal
Rip Cord	Nylon
PE Cross	Material	Polyethy Lene
PE Cross	Construction	4.4mm*4.4mm
Jacket	Material	PVC
	O.D.	6.2 ± 0.2mm
	Color	Customized
Marking	Customized
Mutual Capacitance	5.8nF/100m
Dielectric Test	1000V DC /1 min ; No Breakdown
Temperature Rating	60℃
Operating Temperature	-20℃ ~ 80℃
Velocity of Propagation	0.69

Electrical characteristics

DC impedance: 100Ω ±15%, 1 to 250MHz
Transmission delay: 536ns/100m max at 250MHz
Time delay difference: 35ns max/100m
Capacitance: 5.6nF/100m
DC resistance: ≤9.4Ω
NVP: 68%

Execution standard

CPR, ANSI/TIA/EIA-568, CSAC22.2, ISO/IEC11801, YD/T1019-2001
