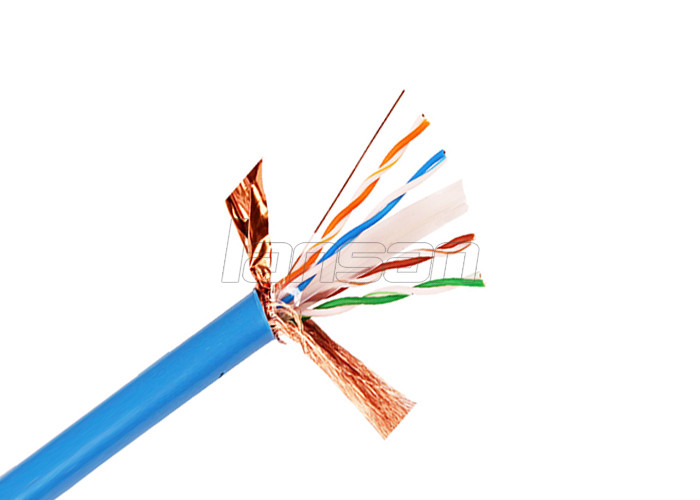

Name: Bare Copper PVC LSZH 23AWG Category 6 Ethernet Cable
Brand: OEM/ ODM/ Lansn
Price: 1 USD

Brand Name : OEM/ ODM/ Lansn

Model Number : CAT6 S/FTP

Certification : UL/ CE/ ETL/ ROHS/ ANATEL

Place of Origin : China

MOQ : 50 Rolls

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal

Supply Ability : 5000 Rolls/Day

Delivery Time : 12-15 Work Day

Packaging Details : 305 meter/roll

Conductor : 0.57mm Solid Bare Copper

Insulation : HDPE

Cord : 4 Twisted Pairs

Shiled : Al Foil

Jacket : LSZH

Color : Customize

Contact Now

Network Cat6 SFTP Cable , Bare Copper Indoor 23AWG PVC/LSZH Category 6 Ethernet Cable

Description

LANSAN Intelligent Structure Cabling products include shielded and unshielded
Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
products.
Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
data transmission.
Combined with keystone Jack Patch cords, and patch panel, it provides
excellent and stable performance.
The solution is for hospital, government manufacturingand other environments.

Specification

No. of Cord	4 Pairs
Conductor	Material	BC
Conductor	Construction	1/0.57± 0.008mm
Insulation	Material	HDPE
Filler	/
Shield1	Material	Single side AL foil which electic side toward outside
Shield1	Coveragae	≧25%
Shield2	Material	Single side AL foil which electic side toward iutside
Shield2	Coveragae	≧25%
Drain Wire	Material	Aluminum Magnesium Metal
Rip Cord	Nylon
Jacket	Material	LSZH/PVC
	O.D.	8.0 ± 0.3mm
	Color	Customized
Marking	Customized
Insulation Resistance	Min. 5000 mega ohms-km at 20℃
Dielectric Test	1000V DC /1 min ; No Breakdown
Temperature Rating	60℃
Operating Temperature	-20℃ ~ 80℃
Bend Radius	4 x cable diameter

Packing

Packing meter: 305m/easy pull box
Inner: easy pull box, wooden reel, plastic reel, paper reel available
Outer: carton box, pull out box, pallet available or according to customer's requirements

Applications

Horizontal twisted pair cable for digital communication application, is mainly used for wiring between telecom lead-outs and floor distributor comprehensive system, as well as wiring between user telecom lead-outs and floor distributor comprehensive system, is meets requirements of 100MHz data communication
Standard wiring length is 90m coded according to ANSI/TIA/EIA-568-B color coded

Bare Copper PVC LSZH 23AWG Category 6 Ethernet Cable
